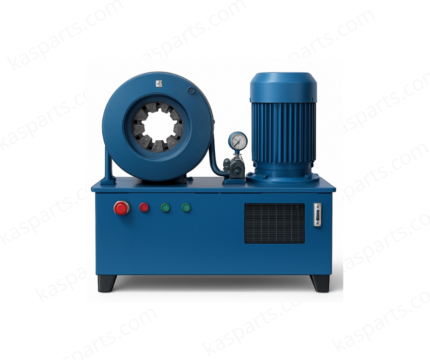

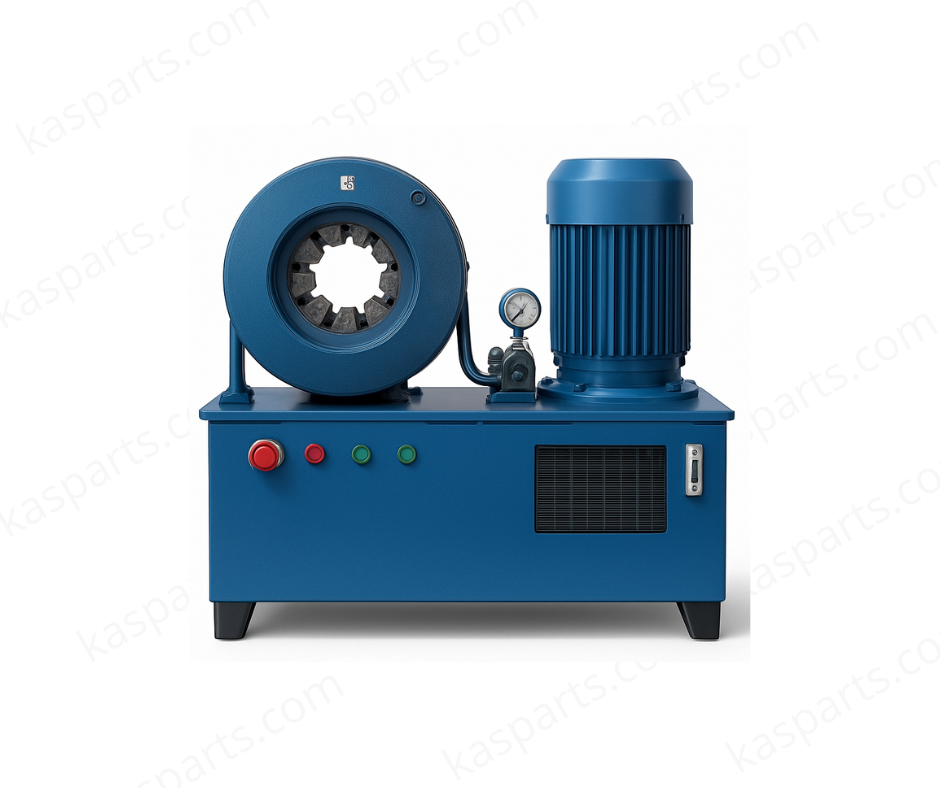

Sertisseuse Electrique JT600 / Electric Crimping Machine

Description

Description
Technical Specifications:

Crimping Force KN: 6000/600(Ton)
Hose Internal Size mm: 4-76

Motor Power (KW): 7.5
Standard Voltage: 380V, 3ph

Optional Voltage: 220V
Oil Pressure (Mpa): 31.5
Opening (mm): +40
Weight without oil (KG): 750

Die Sets: 12

Dimensions(L * W * H)mm: 100*540*900

Standard die sizes

Die No.: 14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 59, 65, 70, 76, 82, 90, 98

Crimping Range (mm): 14-16; 16-19, 19-22, 22-26, 26-30, 30-34, 34-39, 39-45, 45-51, 51-59, 59-65, 65-70, 70-76, 76-82, 82-90, 90-98, 98-106

L (mm): 45, 60, 65, 80, 90, 105, 110

Applicable Product Range:

Hose Type Max hose Size

3 wire braids or textile 3″
4 wire spirals 3″
6 wire spirals 2″

Performance:
Automatic or foot pedal opening and closing control.
Upgrade oil cylinder. Only radial movement of the dies
Easy fix with fine perfromance. High production capacity
Can be used as the nut crimping machine after changing the dies.
High crimping force up to 6000KN.
