Omega Lift 1120500 (11205) Hydraulic Jack – 20 Tons of Lifting Power for Professional Applications
Omega Lift 1120500: A High Capacity Lifting Solution for Heavy Loads

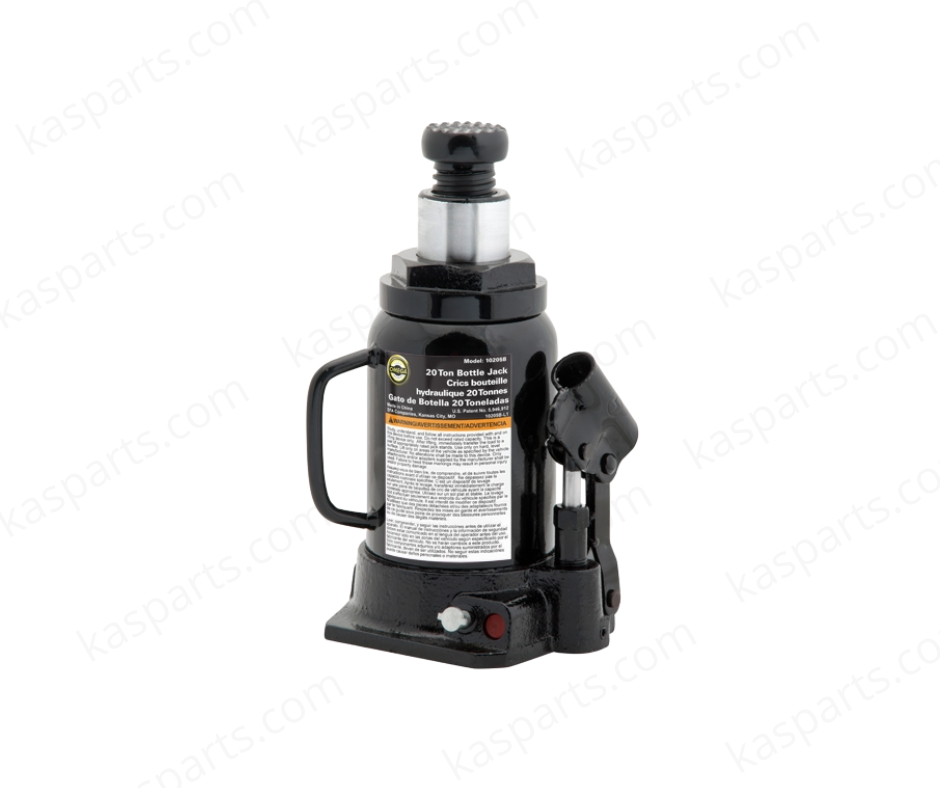

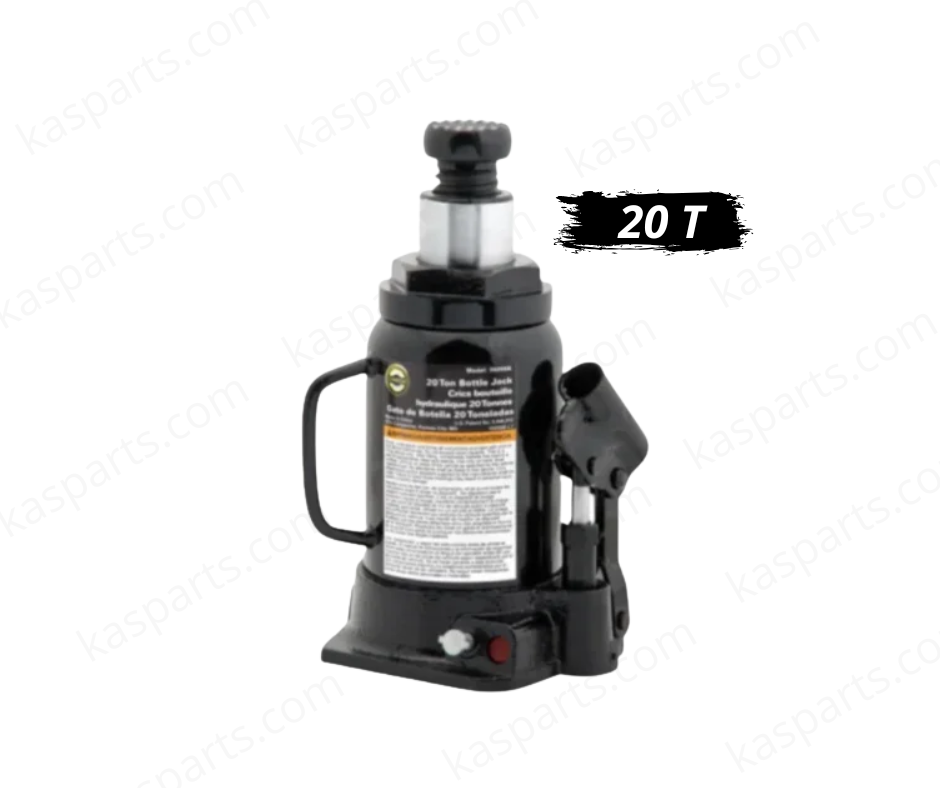

THE jack hydraulic Omega Lift 1120500, also known by the reference 11205, is a professional bottle jack 20 tonnes Designed for heavy-duty workshops, industrial garages, transport companies, mining operations, construction sites, and specialized maintenance centers. Its robust design allows it to efficiently lift heavy vehicles, trailers, buses, agricultural machinery, and industrial equipment under intensive operating conditions.
Made from high-strength cast steel, the Omega Lift 1120500 incorporates a high-quality hydraulic system designed to provide smooth, stable, and safe lifting. Its critical areas are heat-treated to withstand the most demanding mechanical stresses and ensure exceptional durability.
In professional environments, lifting operations require reliable equipment capable of supporting considerable loads while ensuring operator safety. Inappropriate equipment can lead to:
- Risk of accidents
- Load instability
- Prolonged immobilization of vehicles
- High maintenance costs
- Loss of productivity
- Property damage
- longer interventions
The Omega Lift 1120500 provides an effective solution to these problems thanks to its high lifting capacity and professional design.
A Technical Design Adapted to Intensive Applications
Lifting capacity of 20 tons
With a nominal capacity of 20 tonnes, This jack is perfectly suited for industrial vehicles, trucks, buses, agricultural machinery and heavy equipment.
High-Performance Hydraulic System
The hydraulic mechanism allows for progressive, smooth and safe lifting while limiting the effort required during handling operations.
Reinforced Cast Steel Structure
The jack body is made of high-strength steel with reinforcement in areas subject to significant stress.
Patented Bypass System
The hydraulic system incorporates over-pumping protection to prevent internal damage and increase the life of the cylinder.
High Precision Machined Cylinder
Polished cylinders and machined threads ensure excellent sealing and reduce the risk of hydraulic leakage.
Large and Stable Base
The reinforced base ensures excellent stability during lifting operations, even under heavy load.
Advantages of the Omega Lift 1120500 Jack
| Technical Advantage | Direct Impact on Operations |
|---|---|
| Capacity 20 tonnes | Suitable for heavy loads |
| Reinforced structure | Exceptional longevity |
| Patented bypass system | Hydraulic circuit protection |
| High-precision jack | Maximum reliability |
| Wide base | Enhanced security |
| Intensive use | Increased productivity |
| Low maintenance | Cost reduction |
| Omega Lift Quality | Professional performance |
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | Omega Lift 1120500 / 11205 |
| Kind | Hydraulic bottle jack |
| Lifting capacity | 20 tonnes |
| Closed height | 244 mm |
| Hydraulic stroke | 150 mm |
| Extension by screw | 80 mm |
| Maximum height | 474 mm |
| Weight | 12.5 kg |
| Structure | High-strength cast steel |
| Use | Intensive professional |
A Sustainable Solution for Transport and Industrial Professionals
The Omega Lift 1120500 significantly improves the safety and efficiency of maintenance operations on heavy vehicles and equipment.
It allows, in particular, to:
- Reducing the risks associated with lifting
- Optimize intervention times
- Increase the safety of technicians
- Reduce fixed assets
- Improving workshop productivity
- Limit maintenance costs
- Ensure maximum equipment availability
This approach helps to improve the profitability of maintenance activities while ensuring optimal working conditions.
Why choose the Omega Lift 1120500 jack from Kasparts?
At Kasparts, we select professional lifting equipment renowned for its robustness and reliability. Omega Lift 1120500 represents an ideal solution for professionals looking for a powerful bottle jack capable of supporting very heavy loads while offering a high level of safety.
Its 20-ton capacity, reinforced construction and protected hydraulic system make it an essential piece of equipment for specialist workshops and transport companies.
Key Strengths
- Lifting capacity 20 tonnes
- High-performance hydraulic system
- High-strength cast steel
- Built-in overload protection
- High-precision machined cylinder
- High stability
- 80 mm screw extension
- Intensive professional use
- Long lifespan
- Omega Lift Reliability
Certifications and Quality
- Compliant with professional lifting standards
- Rigorous quality control
- Heat-treated reinforced steel
- Safe hydraulic system
- Over-pumping protection
- Suitable for intensive industrial applications
Target Audience
- Truck garages
- Specialized mechanical workshops
- Fleet managers
- Transportation companies
- Mining companies
- Public works companies
- Farms
- Industrial maintenance centers
